3K.WAVE-A15G Outdoor CPE
Built for reliable outdoor connectivity, 3K.WAVE-A1 combines IP67 protection, high-gain reception, 2.5GbE PoE and operator-grade software developed in the EU. Deploy, operate and scale dependable fixed wireless access with confidence.
- Peak 5G downlink (SA/NSA)
- 4.67Gbps
- Peak 5G downlink (SA/NSA)
- Narrow-band antenna gain
- 15dBi
- Narrow-band antenna gain
- Dust & water resistant
- IP67
- Dust & water resistant
- PoE-powered Ethernet
- 2.5GbE
- PoE-powered Ethernet
The product
A 5G CPE that doesn't call your technicians back
A clear graphical interface and remote lifecycle tools simplify troubleshooting, streamline operations and help improve network capacity utilisation — from provisioning through recovery.
Optimal performance
MediaTek T750 single-chip 5G platform supporting SA, NSA and LTE-A Cat 19 for cost-efficient deployment.
EU-controlled software
User interface development, firmware development and release decisions remain under EU-based control — developed in Estonia. Custom versions available.
Operator-grade management
Mobile app, Windows desktop, macOS desktop, Web UI, TR-069, MQTT and a secure SMS client-server channel — no subscription fees.
Flexible installation
Directional outdoor installation on walls or poles, with PoE power and Bluetooth-assisted antenna aiming.
Provision
Easy on-site provisioning and maintenance.
QR-code and Bluetooth provisioning with on-site monitoring. The same interface and secure API can also be used remotely.
Operate
Secure encrypted HTTPS Web UI, TR-069, MQTT, REST API and SMS
Full local and remote control, with or without a data connection using a transparent, secured SMS channel.
Upgrade / Recover
Watchdog and automatic rollback
Various watchdogs can be turned on and off for even more resilient operation. Software can be upgraded over the air (OTA) from the app and the Web UI.
Use cases
Where 3K.WAVE-A1 earns its keep
Coverage extension
Broadband for rural and edge-of-coverage premises beyond viable fibre reach.
Residential FWA
Outdoor 5G reception for homes where weak indoor signal limits performance.
Rapid activation
Connectivity for remote operations, or temporary sites awaiting fixed access.
WAN resilience
Managed primary or backup 5G connectivity for branches and critical locations.
Software
Management software, developed in Estonia (EU)
3K.WAVE simplifies 5G CPE management for telecom service providers across Europe — secure control from configuration through troubleshooting, with no additional subscription fees.
Modern management interface
Device status, radio parameters and network controls through an intuitive mobile app or Web UI. Connect locally via Bluetooth, Ethernet or Wi-Fi — or manage through a secure SMS channel with no data connection at all.
Seamless eSIM provisioning
Switch between the physical SIM and up to four eSIM profiles without physically accessing the mounted device.
Transparent bridge mode
Use any indoor router or Wi-Fi extender, or let the outdoor unit handle routing. Smooth switchover with a DHCP guard watchdog.
Multi-CPE management
Provision multiple devices with a QR code and switch between cached devices in one administrator view — no email registration.
Connection watchdogs
Ethernet and 5G connections are monitored and automatically restored after a failure, reducing downtime and costly site visits.
Upgrade & recover
Software upgrades via Web UI, TR-069 or FOTA, with automatic rollback after a failed upgrade — no site visit required.
Radio performance
Wide-band radio optimised for outdoor reception
European Sub-6 GHz band support with configuration-dependent antenna profiles, on the MediaTek T750 platform — 3GPP Release 15, LTE downlink Cat 19 / uplink Cat 18.
- 4.67Gbps
- Peak 5G downlink
- SA and NSA maximum
- 1.2Gbps
- Peak 5G uplink
- SA Sub-6 maximum
- 1.6Gbps
- Peak LTE downlink
- Cat 19 maximum
- 15dBi
- Narrow-band gain
- 3.5 to 3.8 GHz
Actual performance depends on spectrum, band combinations, signal quality, congestion, firmware and operator policy.
Antenna performance
4×4 MIMO downlink · 2×2 MIMO uplink · optional external parabolic antenna
| Profile | Frequency | Gain |
|---|---|---|
| Full-band | 700 – 960 MHz | 6 dBi |
| Full-band | 1.7 – 2.7 GHz | 9 dBi |
| Full-band | 3.3 – 5.0 GHz | 11 dBi |
| Narrow-band | 3.5 – 3.8 GHz | 15 dBi |
Hardware

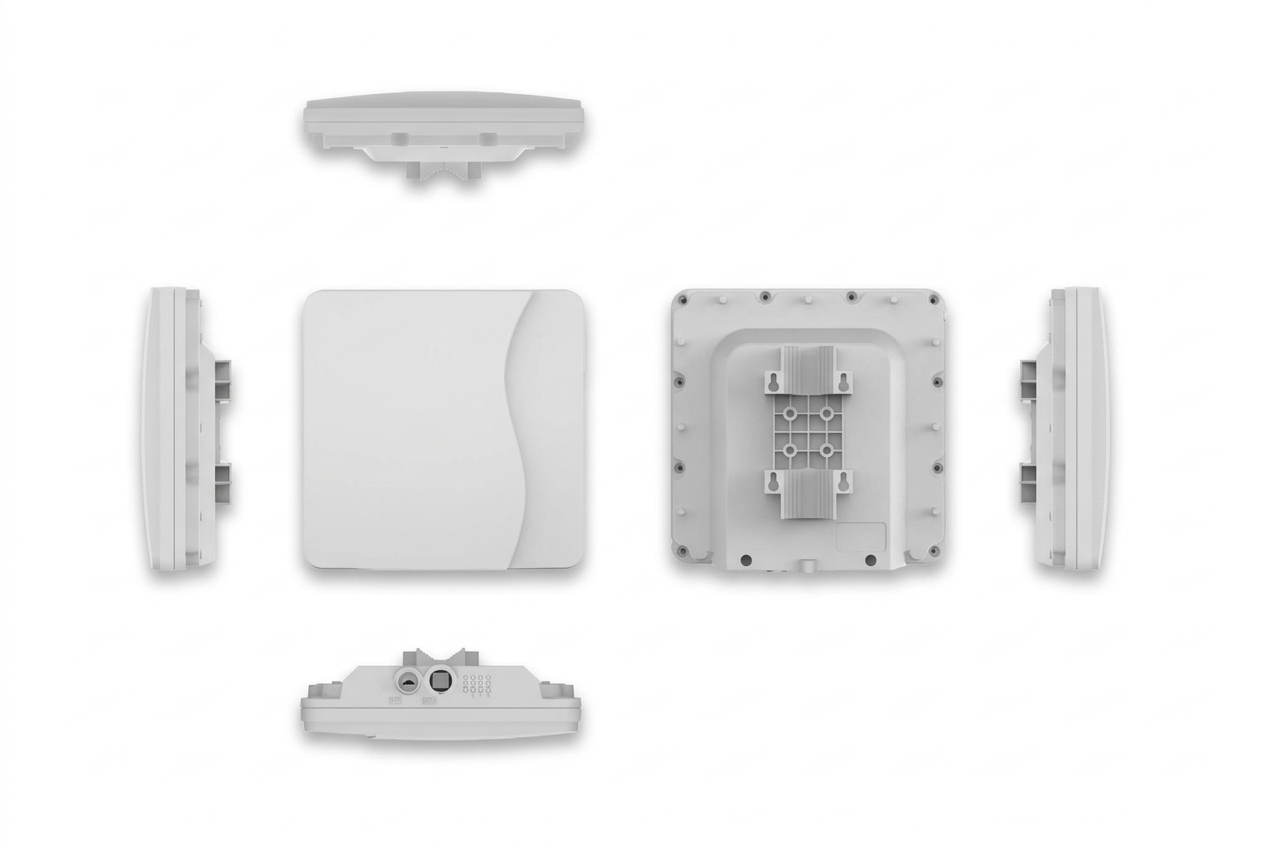

Outdoor hardware, ready to deploy
A thoughtful, robust design enables faster installation and simpler servicing, reducing pressure on field-technician resources.
- IP67 enclosure avoids small, time-consuming screws that get lost in the field
- Water- and dust-resistant covers protect the SIM slot and Ethernet port
- Integrated mounting attachment and included installation rings
- Bluetooth support for local management, provisioning and antenna aiming
- 802.3at/af PoE++ support, also passive 48 V
Specifications
Full technical specifications
3K.WAVE-A1 datasheet v1.0 — hardware and software detail for network planning and procurement teams.
Radio & antenna
- Chipset
- MediaTek T750, 3GPP Release 15, Sub-6 GHz
- 5G mode
- SA and NSA
- Category
- DL Cat 19 / UL Cat 18
- 5G NR bands
- n1/n3/n5/(n71)/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78
- LTE bands
- FDD B1/B3/B5 (B71)/B7/B8/B20/B28/B32 · TDD B38/B40/B41/B42/B43/B46 (LAA)
- WCDMA
- B1/B5/B8
- MIMO
- 4×4 downlink · 2×2 uplink
- Antennas
- 4× built-in LTE/NR, 1× built-in Bluetooth, optional external parabolic
Interfaces & SIM
- Connectivity
- 1 × 2.5GbE · Bluetooth
- SIM support
- 1 × SIM slot (2FF) · 4 × eSIM profiles
- Indicators
- Power, network status, tri-color signal strength, SIM status
- Controls
- Reset button
Power & environment
- Power supply
- DC 48–56 V, 802.3at/af PoE
- Power consumption
- < 24 W
- Dimensions
- 288 × 288 × 82 mm
- Weight
- < 2000 g
- IP rating
- IP67
- Operating temperature
- -30 °C to +70 °C
- Storage temperature
- -40 °C to +80 °C
- Humidity
- 5% – 95% RH, non-condensing
Network & management
- WAN
- Multi-APN (max 4) · IPv4/IPv6 dual stack
- LAN
- DHCP server · DNS proxy · DMZ
- Routing
- Static routing · NAT/bridge mode · port mirror & forwarding
- Management
- TR-069 · MQTT · Web UI · mobile apps (Android/iOS) · secure SMS client-server · FOTA
- Security
- Firewall · MAC/IP/URL filtering · access control · HTTPS WAN login · DoS protection · two access levels
- Reliability
- Watchdog · automatic rollback after failed upgrade
- Supported OS
- Windows 10/11 · macOS 10.10+ · Linux · Chrome OS
Certification & origin
- Compliance
- CE · FCC · RoHS · REACH · WEEE (available before market release)
- Environmental testing
- IEC 60068-2-1/-2/-30/-14 (temperature) · -2-27 shock · -2-32 free fall · -2-6 vibration
- Product origin
- Hardware manufactured in China; software development, firmware configuration and release control managed in the EU
Services
More than hardware
3K.WAVE-A1 is the first in a planned range of 5G CPE products for the European market, backed by more than 40 years of software development experience.
Software customisation
Tailor the management software to your network, processes and subscriber experience.
Management integration
Integrate with your existing management systems — new channels can be added into the existing secure encrypted REST API.
Software branding
White-label the interface and apps so the product carries your operator brand end to end.
Contact
Let's talk about your network
Fewer site visits, faster activations, reliable uptime and lower operating costs. Reach out for a live demo, pricing or integration questions.
3K Group · Software developed in Estonia, EU · CE certified in the EU
